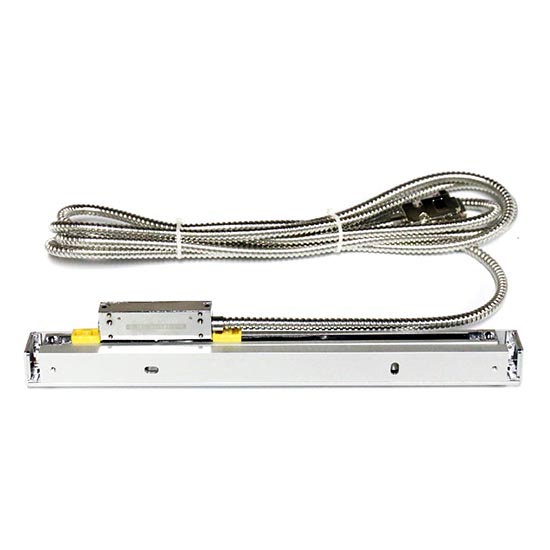

KA500 Slim Linear Encoder Technical Parameters:
1.Grating pitch: 0.02mm (50 lines / mm)
2.Resolution: 5um, 1um, 0.5um
3.Accuracy: +3um, +5um, +10um (20+0.1°C)
4. Measuring range 70-470mm
5.Moving speed: high speed ruler 120m / min (need to customized) ; Ordinary ruler ≤40m/min
6.Power supply 5V + 5%, 80mA ( 24V can be customized)
7.Cable length: standard 3m (KA-200 open long scale standard 2m, special length can be provided according to user needs)
8.Working temperature: 0-45 ° C

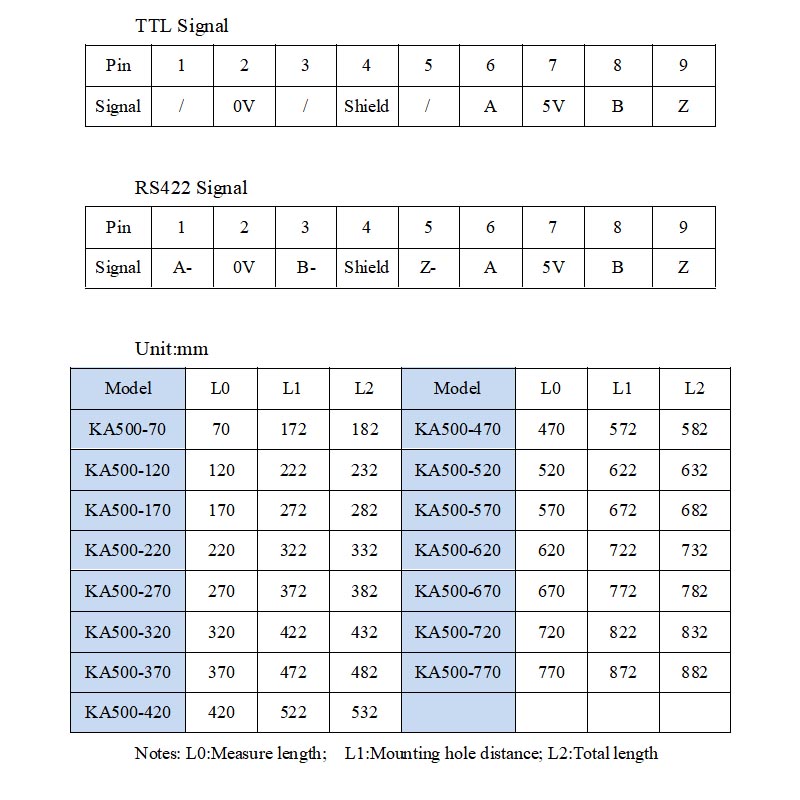

9.Plug pin: 9-pin socket / 7-pin round socket, support RS-422 signal output, support TTL square wave signal output
10.Grating ruler zero: Every 50mm per reference point

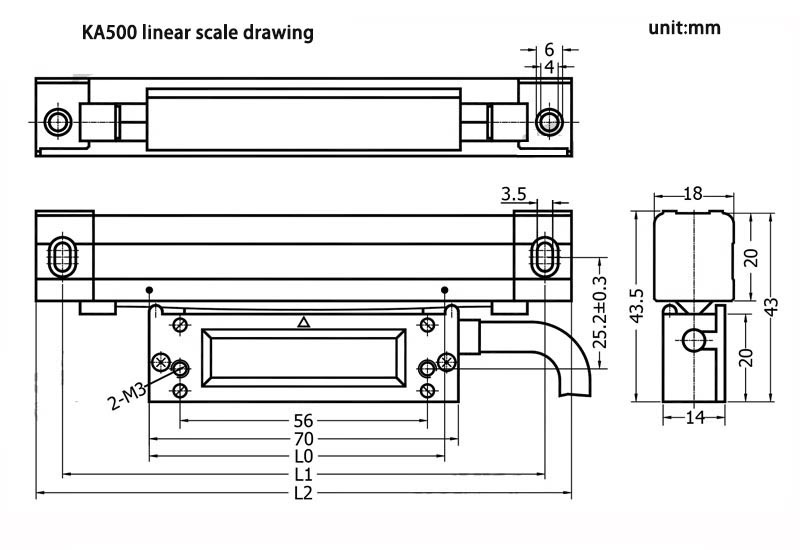

11.Dimension:18*20mm
1.Grating pitch: 0.02mm (50 lines / mm)
2.Resolution: 5um, 1um, 0.5um
3.Accuracy: +3um, +5um, +10um (20+0.1°C)
4. Measuring range 70-470mm
5.Moving speed: high speed ruler 120m / min (need to customized) ; Ordinary ruler ≤40m/min
6.Power supply 5V + 5%, 80mA ( 24V can be customized)
7.Cable length: standard 3m (KA-200 open long scale standard 2m, special length can be provided according to user needs)
8.Working temperature: 0-45 ° C
9.Plug pin: 9-pin socket / 7-pin round socket, support RS-422 signal output, support TTL square wave signal output
10.Grating ruler zero: Every 50mm per reference point
11.Dimension:18*20mm
 |
