The magnetic scale is a non-contact displacement feedback system whose function is realized by magnetic induction.



Magnetic Sensor Characteristics:


1. High precision, accuracy up to ±10μm/300mm, ±20μm/1000mm



2. Measuring length: 0~ 50 meters, can meet the application of large machine.



3. Not sensitive to shock, vibration and pollution, can be used in harsh environments such as dust and oil



4. Not easy to wear, maintenance-free, sturdy, long working life





Magnetic Sensor Technical Parameters:

Model Resolution Output signal Input voltage Output voltage Working Temperature Storage Temperature Current Consumption Cable length
MCR500AS  0.005mm  TTL or RS422
 5-24V  5V or 24V
 -20 ° C ~ 70 ° C  -30 ° C ~ 80 ° C  <70mA(Non-load)  3 meter
MCR200AS  0.001mm  TTL or RS422
 5-24V  5V or 24V
 -20 ° C ~ 70 ° C  -30 ° C ~ 80 ° C  <70mA(Non-load)  3 meter










It can customize for 10um,25um,50um,100um resolution.
All our magnetic sensor compatible with our digital readouts.

Output Signal:

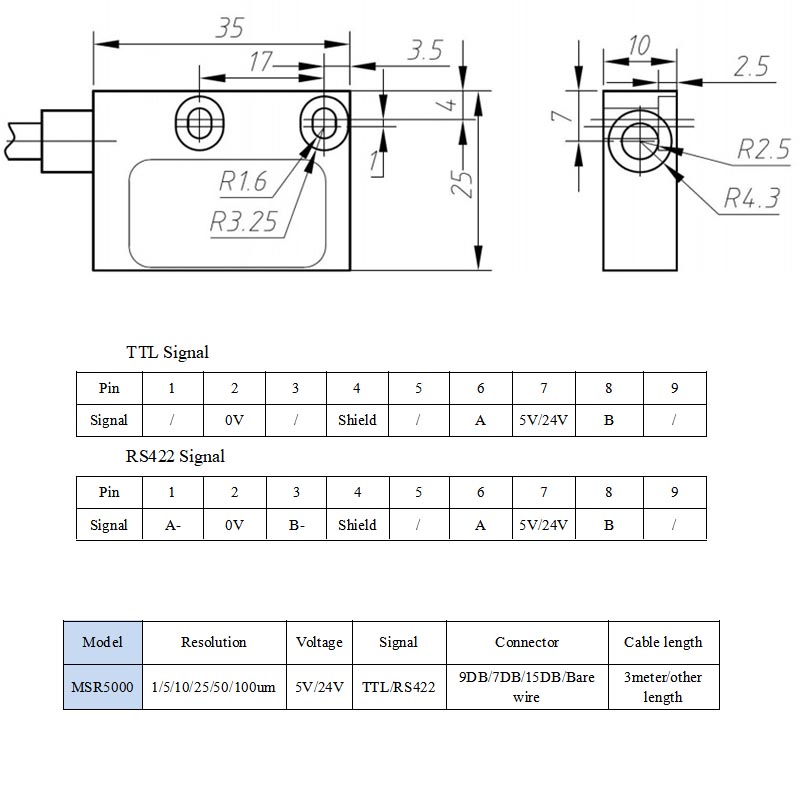

Pin No./Signal 1 2 3 4 5 6 7 8 9
TTL Signal Null 0V Null Null Null A 5V-24V B Z
RS422 Signal A- 0V B- Null Z- A 5-24V B Z
Wire colour Blue White Green   Orange Yellow Red Brown Black
